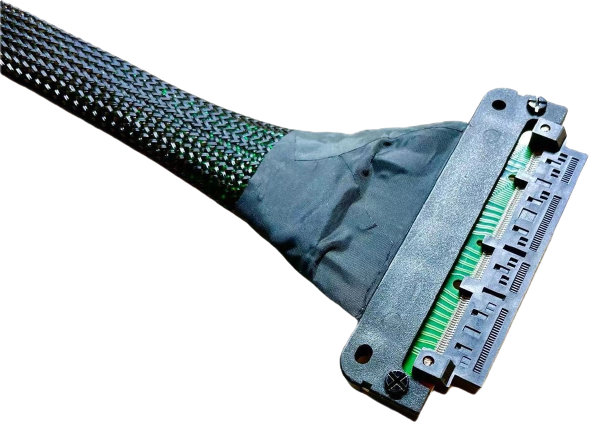

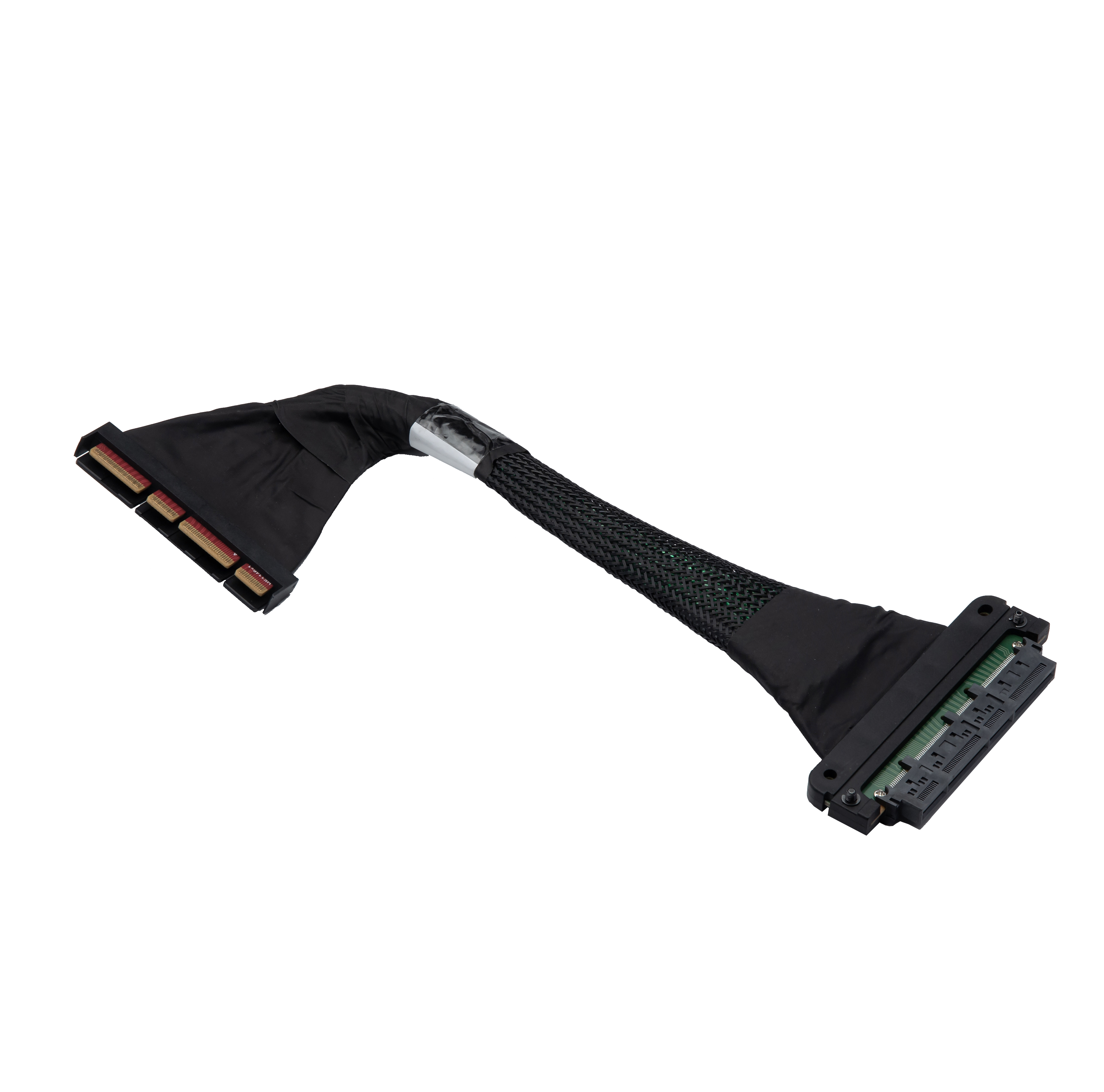

Gen-Z 连接线束
Description
1C (56pin) / 2C (84pin) / 4C (140pin) / 4C+ (168pin)
Specification
- Standard SFF-TA-1020 ; SAS 3.0/4.0/5.0 ; PCIe Gen 3/4/5

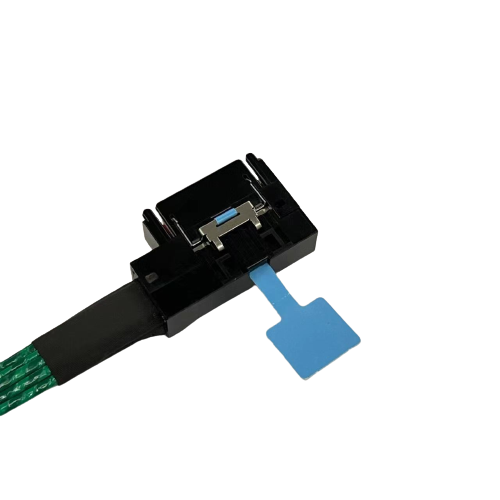

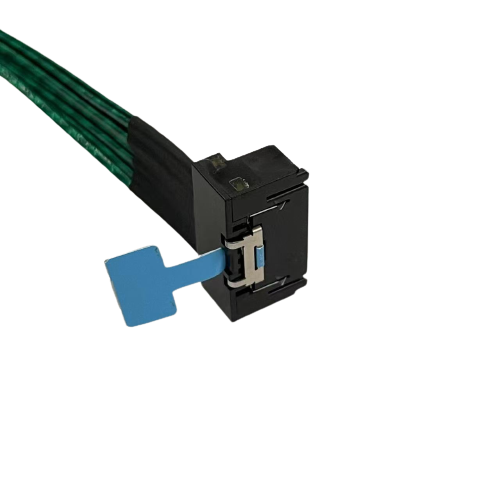

- Optional plugs Straight, Right angle, Side exit
- Pull-tab on the plug is available
- Supports impedance 85Ω & 100Ω and Application 30-32AWG cable
- Data rate up to 32GT/s NRZ and up to 56Gbps PAM4 capability
- Flammability connector UL94V-0 & cable VW-1
Features & Applications
- Server & Storage device
- High-performance computing
- Switch
- Router
- RoHS compliant & Halogen-free is available on request
