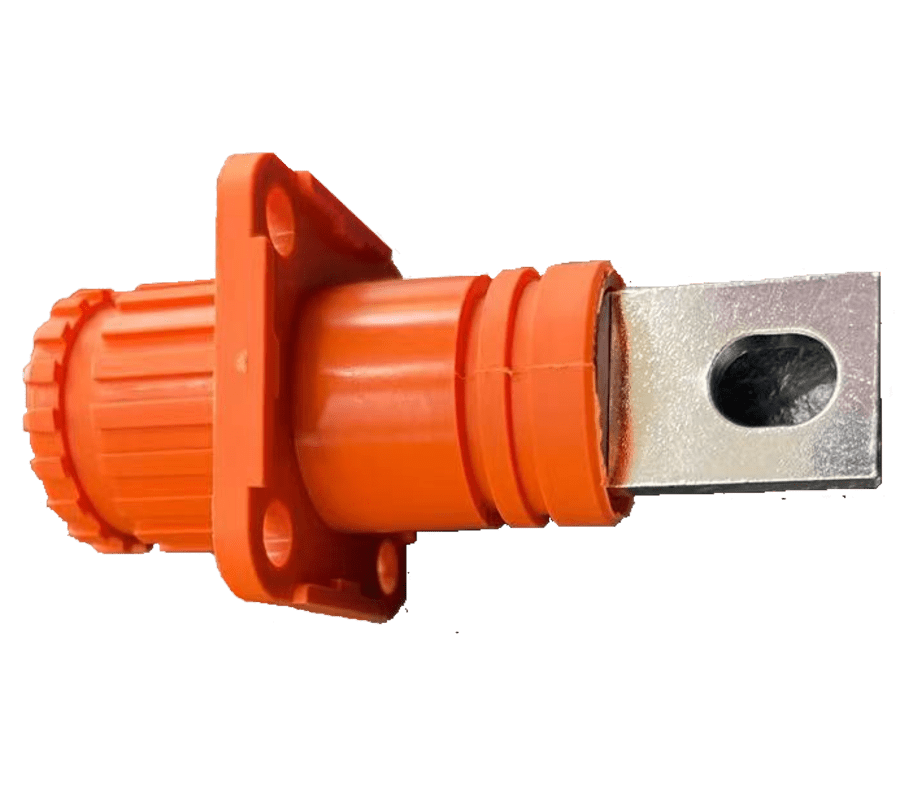

Energy Storage Wire Harness
Description
High voltage electric power transmission for Battery System
Specification
- Conn :
- 5.7/8.0/10.3mm option
- Release the latch when quickly locking and pulling out
- 360˚ rotating plug optional
- Touch proof-
- Threaded column, Threaded hole, Waist hole options
- Cable :
- UL3932 2000V 16 ~ 95mm²(6~3/0AWG) OD 7.8 ~ 17.5
- Insulation: XLPE UL 94-V0
- Crimping height 10.96+/-0.05mm- - Lind End: 100A~300A 1000V ~ 1500V DC
- Plate End: 120A ~ 350A 1000V ~ 1500V DC
- Working temperature: -40℃ ~ 125℃
Features
- Assembled battery cables can be used in a variety of battery connection applications, including ESS, cars, trucks, solar energy, and inverters.
- Quick Installation
- IP67
- RoHS compliant
