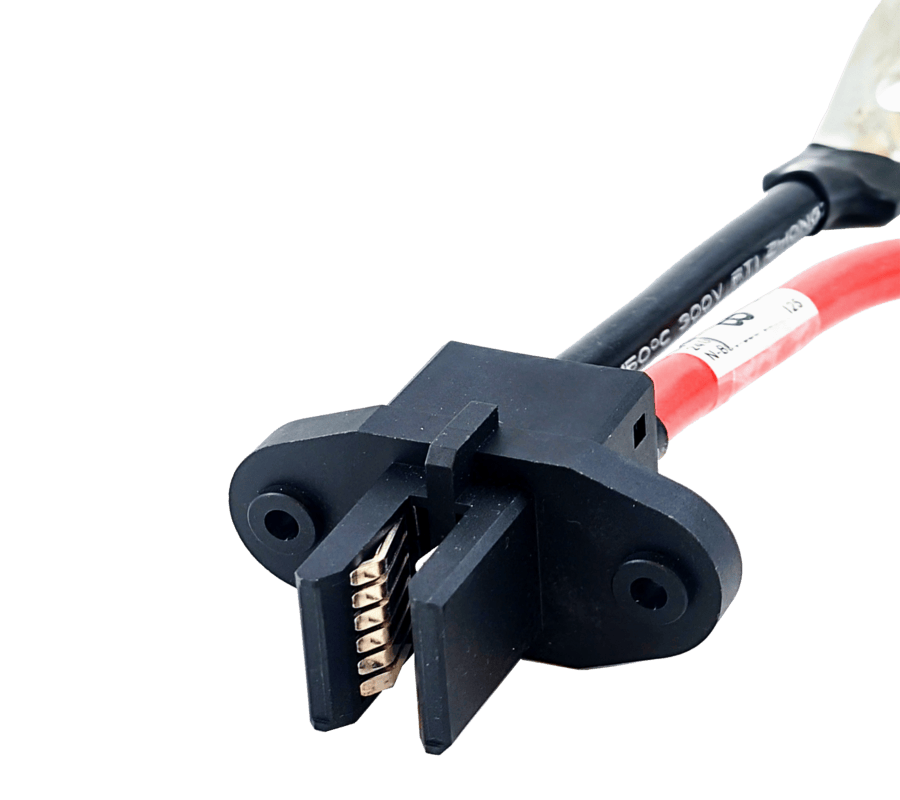

Open Rack V2 Power Busbar Cable Assembly
Description
Compliant with Open Compute Project (OCP) ORV2 specifications, this power output busbar cable features tin-plated dual-hole terminals on the other end. It is designed for power supply applications in servers and data centers, connecting to PSUs or PDBs, and can be customized to meet specific interface requirements.
Specifications
- Rated Voltage/Current: 48V/55A~75A (compatible wire gauge assessed based on requirements)
- Cable Spec: UL3132, 6 AWG (customizable from 6 to 20 AWG upon request)
- Environmental Compliance: RoHS
Applications & Features
- Low insertion force for easy connection and operational flexibility
- Supports OCP data centers, servers, and Open Rack storage systems
- Highly customizable output interface, compatible with connectors, O-ring terminals, and special-size terminals
